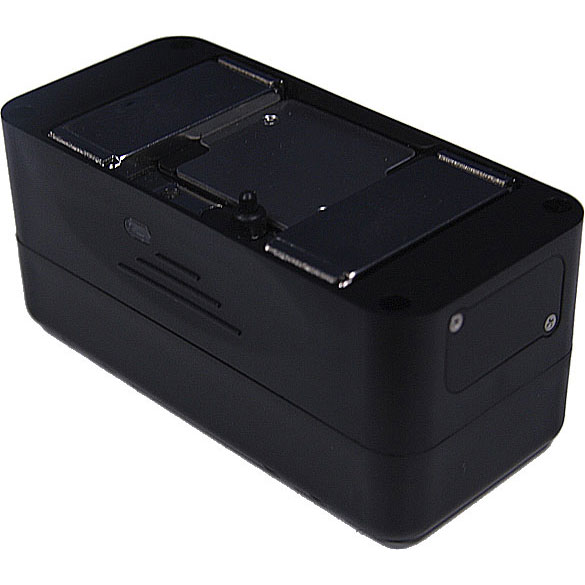

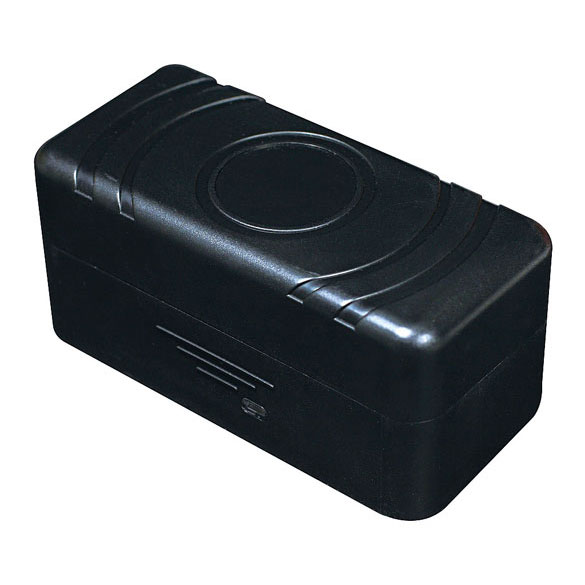

CAP M7 is a portable GPS Tracking device, with compact in size, easy mounting or hiding by magnetic installation to the metal part of a vehicle. With the superior GPS, GSM/GPRS modules on board, ultra low standby power consumption, IP 67 rated water proof feature in outdoor environment; M7 provides the best choice to your GPS vehicle tracking application, with its reliability, convenience and flexibility.

Product Feature

• Data transmission via SMS/GPRS/UDP/TCP.
• Detached alert.
• Motion report.
• Roaming preference setting.
• Low battery level alert.
• Power management setting.
• Tracking by voice call.
• Installation in seconds.
• Up to 3 years+ standby time.

Hardware Specification

• Dimension(L : W : H): 102mm : 47mm : 46mm.
• Weight (net): 300g.
• Communication module: Quad-band, GSM 850/900/1800/1900 MHz.
• GPS receiver: 66 channels, -165dBm high sensitivity GPS receiver.
• Memory: 4MB.
• Back-up battery: Built-in 5200mAh Li-ion rechargeable battery.

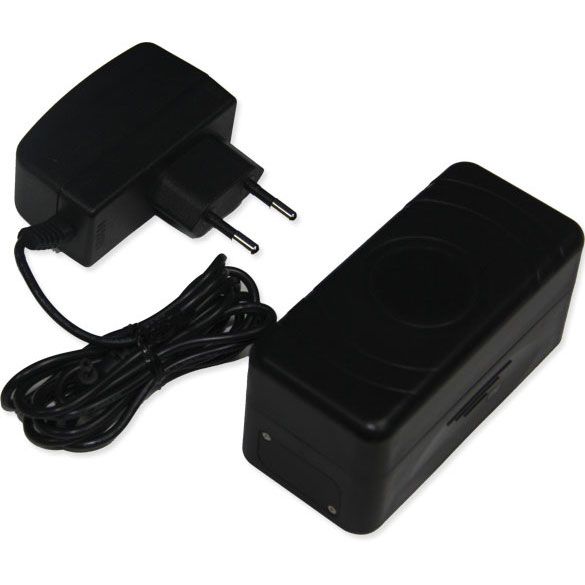

• Unit charging: 5V DC, 900mA.
• Tampering switch: built-in.
• GPS antenna: built-in.
• GSM antenna: built-in.
• Tri-axial acceleration sensor: built-in.
• Enclosure: ABS plastic, IP 67 rated.
• LED indicator: One LED with 3 colors for status indicating.
• Mounting: Magnetic.
• Radio Beacon: 433MHz, Optional.
