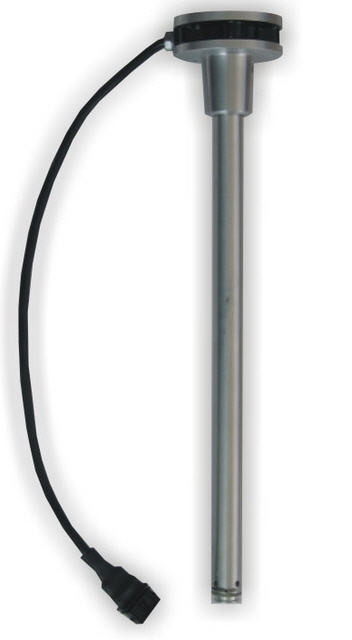

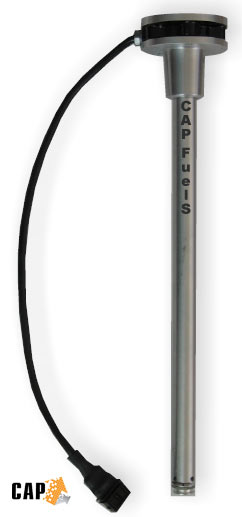

The sensor has no moving parts, and measures the level of electronic means. What will extend the life of the sensor in a few times. You can use the sensor CAP LLS with strongly alkaline and strongly acidic media. What expands the scope of the probe. The sensors have a standard mount for 5 screws. Configuration: Level sensor, cable 4 meters long and screws for installation in the staffing hole, laying a passport. CAP LLS-A

The sensors have a standard mount for 5 screws.

Configuration: Level sensor, cable 4 meters long and screws for installation in the staffing hole, laying a passport.

liquid fuel sensor, fuel level sensor, fueel tank capacity
New Feature

CAP fuel level sensors now have new feature. Our sensors are completed with plastic plug: special fitting which permits to cut it to any necessary height to fit the fuel tank perfectly.

In addition, plastic plug protects LLS from water, mud, and dirt that accumulates on the fuel tank bottom, and allows to avoid short circuit.

Specifications
Output
- type of signal, analog, V
- volume of fuel 0%	0.5
- volume of fuel 100%	4.5 (10)
- voltage, V	10...30
- maximum load current, mA	100
Lower limit value controlled by the level of fuel from the vessel bottom, mm	1... 20
The value of the upper limit of measurement (L),mm**	200...4000
Power, W	< 0.2
Dimensions of level sensor, mm	L x 70 x 70
Weight of level sensor, kg	0.3...3
Continuous operation sensor	Unlimited
Accuracy
Deviation level,% length of the sensor	± 0.1
Operating conditions
Ambient temperature, ° C	from -40 to +55

* upper and lower value of the signal depend on the crop sensor.

** Cropping is allowed up to 30% of the original length.

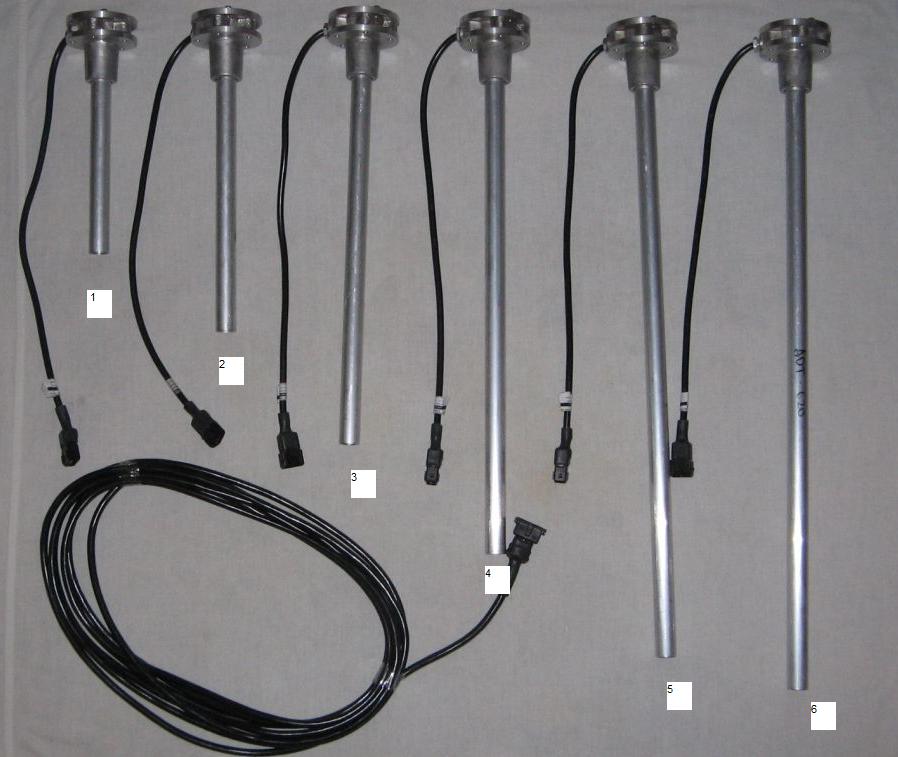

So looks set level sensor:

Chart fuel level:

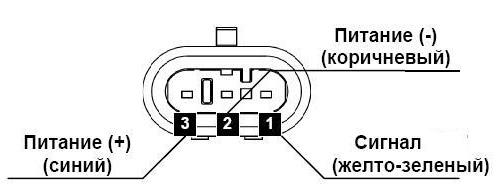

Connecting to sensor:

CAP VT-200
